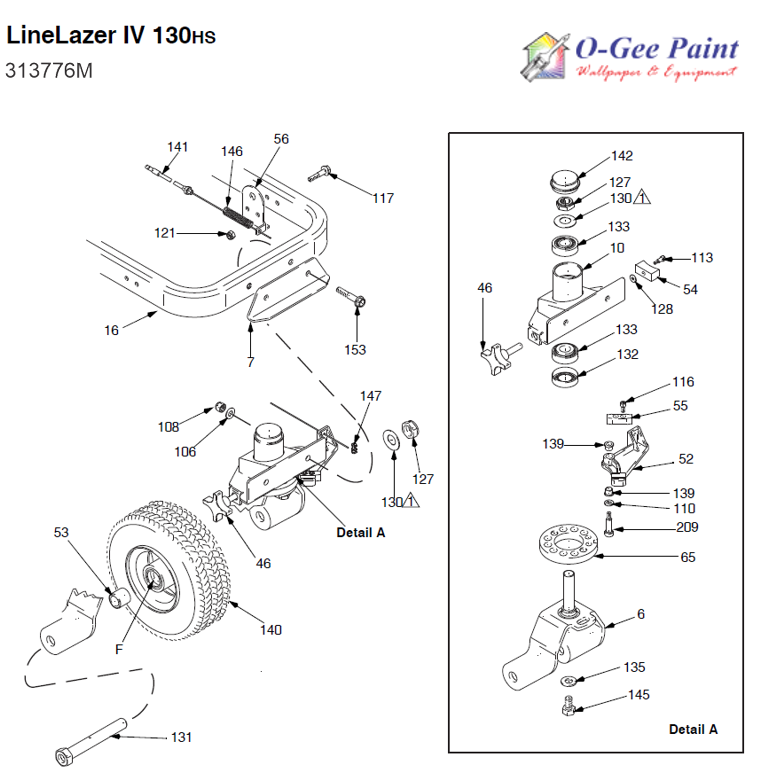

LineLazerStiper 130hs front wheel and bracket parts breakdown
MANUAL
34 found, showing page 1 of 1
Item Description Price UM Qty Add to Cart
007 - CASTER BRACKET 130HS GR240991 007 - CASTER BRACKET 130HS 45.00 / EA Ships in 3-5 days
007 - CASTER BRACKET 130HS GR240991 007 - CASTER BRACKET 130HS 45.00 / EA Ships in 3-5 days
010 - CASTER HUB GR15G952 010 - CASTER HUB 145.00 / EA Ships in 3-5 days
010 - CASTER HUB GR15G952 010 - CASTER HUB 145.00 / EA Ships in 3-5 days
016 - LINELAZER IV CART FRAME GR287623 016 - LINELAZER IV CART FRAME 925.00 / EA Ships in 3-5 days
046 - KNOB LINELAZER GUN HOLDER GR181818 046 - KNOB LINELAZER GUN HOLDER 46.20 / EA Ships in 3-5 days
052 - DETENT ARM GR193528 052 - DETENT ARM 90.00 / EA Ships in 3-5 days
053 - SEAL NUT GR193658 053 - SEAL NUT 15.00 / EA Ships in 3-5 days
054 - JAW GR193661 054 - JAW 25.00 / EA Ships in 3-5 days
055 - LINE LAZER WHEEL WEDGE GR193662 055 - LINE LAZER WHEEL WEDGE 25.00 / EA Ships in 3-5 days
056 - CABLE BRACKET GR15F910 056 - CABLE BRACKET 13.00 / EA Ships in 3-5 days
065 - STOP WHEEL DISC LINE LAZER GR198606 065 - STOP WHEEL DISC LINE LAZER 54.25 / EA Ships in 3-5 days
106 - WASHER GR100731 106 - WASHER 6.00 / EA Ships in 3-5 days
108 - LOCK NUT GR101566 108 - LOCK NUT 11.00 / EA Ships in 3-5 days
110 - PLAIN WASHER SPACER GR15J603 110 - PLAIN WASHER SPACER 7.50 / EA Ships in 3-5 days
113 - LINE LAZER GUN HOLDER SCREW GR108483 113 - LINE LAZER GUN HOLDER SCREW 10.90 / EA Ships in 3-5 days
116 - CAP SCREW HEX FLANGE GR110754 116 - CAP SCREW HEX FLANGE 7.50 / EA Ships in 3-5 days
121 - LOCK NUT NYLOCK INSERT 5/16 IN GR111040 121 - LOCK NUT NYLOCK INSERT 5/16 IN 6.90 / EA Ships in 3-5 days
127 - LOCK NUT GR112405 127 - LOCK NUT 4.90 / EA Ships in 3-5 days
128 - PLAIN WASHER GR112776 128 - PLAIN WASHER 3.60 / EA Ships in 3-5 days
130 - SPRING BELLEVILLE GR112825 130 - SPRING BELLEVILLE 7.40 / EA Ships in 3-5 days
131 - CAP SCREW HEX HEAD GR113471 131 - CAP SCREW HEX HEAD 13.40 / EA Ships in 3-5 days
132* - SEAL GREASE GR113484 132* - SEAL GREASE 13.60 / EA Ships in 3-5 days
133* - BEARING CUP / CONE GR113485 133* - BEARING CUP / CONE 42.50 / EA Ships in 3-5 days
135 - WASHER HARDENED GR113962 135 - WASHER HARDENED 5.00 / EA Ships in 3-5 days
139 - BRONZE BEARING GR114548 139 - BRONZE BEARING 5.00 / EA Ships in 3-5 days
140 - WHEEL PNEUMATIC GR114549 140 - WHEEL PNEUMATIC 153.50 / EA Ships in 3-5 days
141 - WHEEL CABLE LINELAZER II III GR241445 141 - WHEEL CABLE LINELAZER II III 45.00 / EA Ships in 3-5 days
142 - FRONT WHEEL DUST CAP GR114648 142 - FRONT WHEEL DUST CAP 12.00 / EA Ships in 3-5 days
145 - CAP SCREW HEX HEAD GR114681 145 - CAP SCREW HEX HEAD 3.00 / EA Ships in 3-5 days
146 - LINE LAZER WHEEL RETURN SPRING GR114682 146 - LINE LAZER WHEEL RETURN SPRING 8.50 / EA Ships in 3-5 days
147 - CABLE STOP LINE LAZER II WHEEL GR114802 147 - CABLE STOP LINE LAZER II WHEEL 5.00 / EA Ships in 3-5 days
153 - CAP SCREW GR114982 153 - CAP SCREW 5.00 / EA Ships in 3-5 days
154* - SHOULDER BOLT GR120476 154* - SHOULDER BOLT 7.50 / EA Ships in 3-5 days
34 found, showing page 1 of 1
