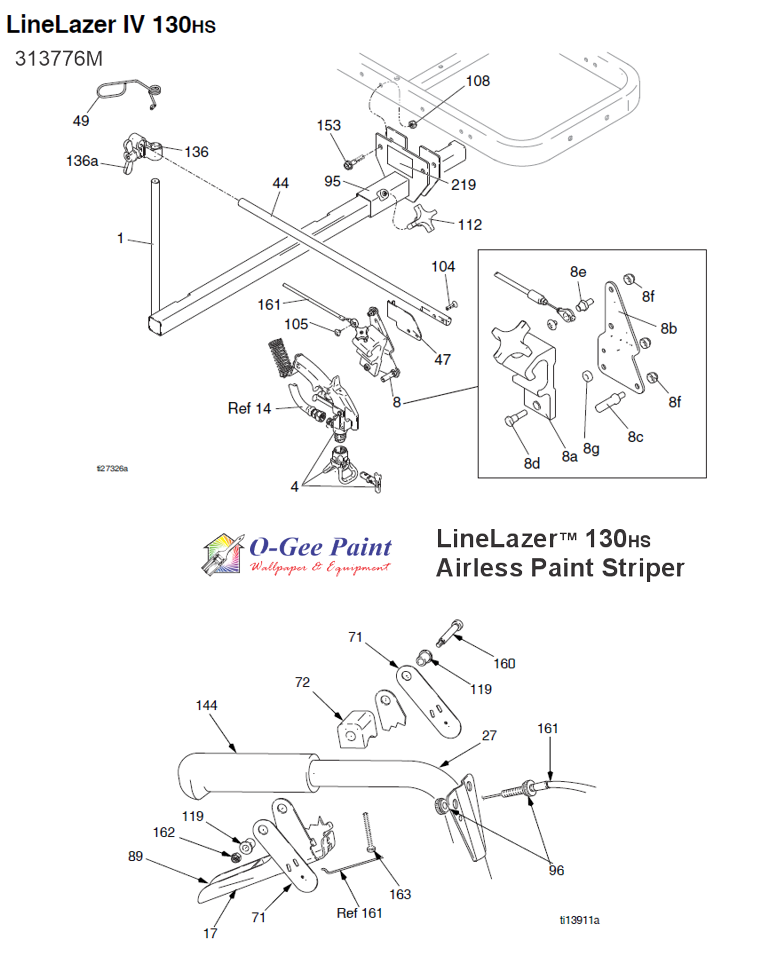

LineLazerStiper 130hs Gun Arm and Trigger Assembly parts breakdown
MANUAL
34 found, showing page 1 of 1
Item Description Price UM Qty Add to Cart
001 - GUN SUPPORT BRACKET LL GR224052 001 - GUN SUPPORT BRACKET LL 101.00 / EA Ships in 3-5 days
004 - FLEX GUN FOR LINESTRIPING GR248157 004 - FLEX GUN FOR LINESTRIPING 229.38 / EA Ready to go
008 - GUN HOLDER GR287570 008 - GUN HOLDER 136.50 / EA Ships in 3-5 days
008a - GUN HOLDER REPAIR  KIT GR287569 008a - GUN HOLDER REPAIR KIT 73.25 / EA Ships in 3-5 days
008b - LEVER ACTUATOR STRIPER GUN ARM GR15F214 008b - LEVER ACTUATOR STRIPER GUN ARM 22.90 / EA Ships in 3-5 days
008c - TRIGGER PULL STUD LINELAZER GUN GR15F209 008c - TRIGGER PULL STUD LINELAZER GUN 18.00 / EA Ships in 3-5 days
008e - CABLE GUN STUD  NEW STYLE GR17H673 008e - CABLE GUN STUD NEW STYLE 15.00 / EA In Stock
008e - CABLE GUN STUD  NEW STYLE GR17H673 008e - CABLE GUN STUD  NEW STYLE 15.00 / EA In Stock
008e - CIRCLIP 8MM GUN CABLE STUD GR126111 008e - CIRCLIP 8MM GUN CABLE STUD 5.00 / EA In Stock
008f - LOCK NUT GR102040 008f - LOCK NUT 0.55 / EA Ready to go
014 - 1/4 IN X 7 FT   GUN HOSE GR245798 014 - 1/4 IN X 7 FT GUN HOSE 55.25 / EA Ships in 3-5 days
017 - TRIGGER HND LINELAZER GR245733 017 - TRIGGER HND LINELAZER 160.00 / EA Ships in 3-5 days
027 - HANDLE BAR GR287417 027 - HANDLE BAR 420.00 / EA Ships in 3-5 days
046 - KNOB PRONGED, LL GR111145 046 - KNOB PRONGED, LL 18.00 / EA Ready to go
047 - CABLE BRACKET LINELAZER GUN ARM GR15F213 047 - CABLE BRACKET LINELAZER GUN ARM 4.55 / EA Ships in 3-5 days
049 - CABLE GUIDE GR188135 049 - CABLE GUIDE 43.20 / EA Ships in 3-5 days
071 - PLATE LEVER PIVOT GR198895 071 - PLATE LEVER PIVOT 28.00 / EA Ships in 3-5 days
072 - LL GUN MOUNTING BLOCK GR198896 072 - LL GUN MOUNTING BLOCK 48.00 / EA Ships in 3-5 days
083 - LABEL WARNING INJECT HAZARD GR15F637 083 - LABEL WARNING INJECT HAZARD 1.00 / EA Ships in 3-5 days
089 - TRIGGER LABEL GR17K587 089 - TRIGGER LABEL 3.00 / EA Out of stock
096 - KNURLED NUT GUN CABLE GR15F624 096 - KNURLED NUT GUN CABLE 2.40 / EA Ships in 3-5 days
104 - SCREW FHSC 1/2-20 X .875 GR119647 104 - SCREW FHSC 1/2-20 X .875 0.60 / EA Ships in 3-5 days
105 - SCREW TRUSS HD X RECESS GR119648 105 - SCREW TRUSS HD X RECESS 1.10 / EA Ships in 3-5 days
109 - TIE STRAP GR102478 109 - TIE STRAP 8.50 / EA Ships in 3-5 days
117 - SCREW HEX FLANGE GR110837 117 - SCREW HEX FLANGE 5.50 / EA Ships in 3-5 days
119 - FLANGE BEARING GR111017 119 - FLANGE BEARING 3.95 / EA Ships in 3-5 days
121 - LOCK NUT NYLOCK INSERT 5/16 IN GR111040 121 - LOCK NUT NYLOCK INSERT 5/16 IN 6.90 / EA Ships in 3-5 days
136 - CLAMP KIT LINELAZER GUN HOLDER GR287566 136 - CLAMP KIT LINELAZER GUN HOLDER 88.00 / EA Ships in 3-5 days
144 - HANDLEBAR GRIP GR114659 144 - HANDLEBAR GRIP 22.00 / EA Ships in 3-5 days
160 - SCREW SHOULDR SOCKET HEAD GR116941 160 - SCREW SHOULDR SOCKET HEAD 5.00 / EA Ships in 3-5 days
161 - GUN CABLE LINELAZER IV 3900 5900 GR287696 161 - GUN CABLE LINELAZER IV 3900 5900 87.00 / EA Ships in 3-5 days
162 - LOCK NUT GR116969 162 - LOCK NUT 2.50 / EA Ships in 3-5 days
163 - SCREW #10 TAPTITE PHIL HD GR116973 163 - SCREW #10 TAPTITE PHIL HD 2.50 / EA Ready to go
360 - BRACKET GUN ARM GR15F389 360 - BRACKET GUN ARM 115.00 / EA Ships in 3-5 days
34 found, showing page 1 of 1
