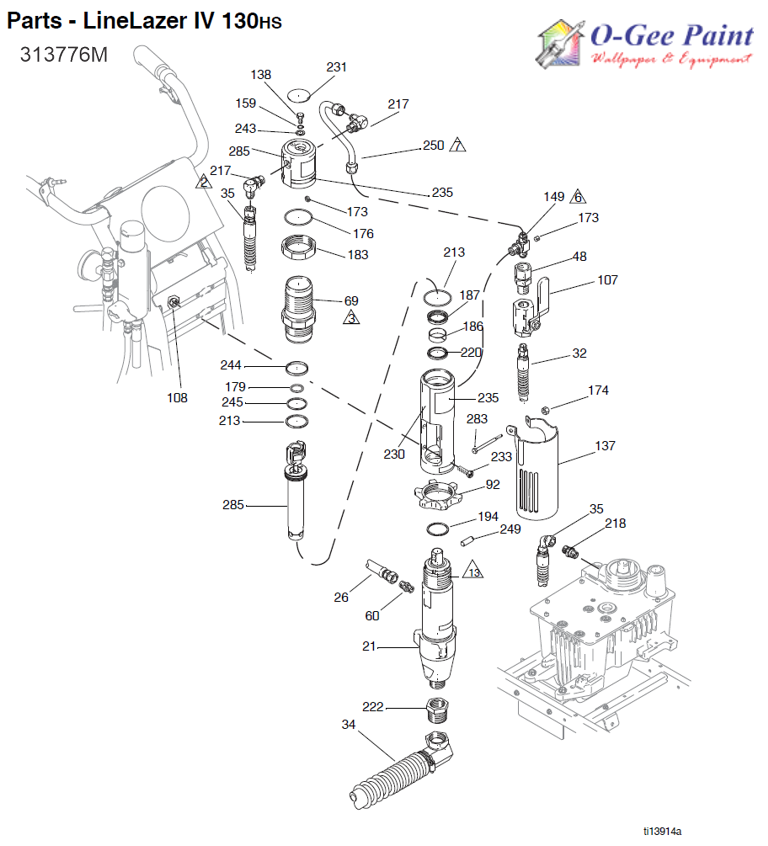

LineLazerStiper 130hs Hydraulic Head and Fluid Pump parts breakdown
MANUAL
39 found, showing page 1 of 1
Item Description Price UM Qty Add to Cart
021 - DISPLACEMENT PUMP 130HS GR24B748 021 - DISPLACEMENT PUMP 130HS 1,010.00 / EA Ships in 3-5 days
026 - 3/8" X 3  PUMP HOSE  LLIV GR245797 026 - 3/8" X 3 PUMP HOSE LLIV 145.50 / EA Ships in 3-5 days
032 - HOSE HYDRAULIC SUPPLY GR287175 032 - HOSE HYDRAULIC SUPPLY 150.00 / EA Ships in 3-5 days
034 - SUCTION RETURN HOSE GR287206 034 - SUCTION RETURN HOSE 511.00 / EA Ships in 3-5 days
035 - HOSE HYDRAULIC RETURN GR287176 035 - HOSE HYDRAULIC RETURN 142.50 / EA Ships in 3-5 days
048 - NIPPLE STRAIGHT ADAPTER GR117328 048 - NIPPLE STRAIGHT ADAPTER 18.00 / EA Ships in 3-5 days
060 - NIPPLE ADAPTER GR196178 060 - NIPPLE ADAPTER 7.40 / EA Ships in 3-5 days
069 - SLEEVE HYDRAULIC CYLINDER GR246176 069 - SLEEVE HYDRAULIC CYLINDER 539.00 / EA Ships in 3-5 days
092 - RETAINING NUT GR193031 092 - RETAINING NUT 66.75 / EA Ships in 3-5 days
107 - BALL VALVE GR117441 107 - BALL VALVE 126.00 / EA Ships in 3-5 days
108 - LOCK NUT GR101566 108 - LOCK NUT 11.00 / EA Ships in 3-5 days
137 - PUMP ROD GUARD GR15F911 137 - PUMP ROD GUARD 65.00 / EA Ships in 3-5 days
137 - SCREW CAP HEX HD GR106276 137 - SCREW CAP HEX HD 6.00 / EA Ships in 3-5 days
149 - TEE BRANCH STREET GR119841 149 - TEE BRANCH STREET 45.80 / EA Ships in 3-5 days
159 - O-RING PACKING GR155685 159 - O-RING PACKING 9.60 / EA Ships in 3-5 days
173 - PLUG 1/8 INCH GR100139 173 - PLUG 1/8 INCH 6.50 / EA Ships in 3-5 days
174 - LOCK NUT GR102040 174 - LOCK NUT 0.55 / EA Ships in 3-5 days
176 - O-RING PACKING GR105765 176 - O-RING PACKING 6.00 / EA Ships in 3-5 days
179 - O-RING PACKING GR108014 179 - O-RING PACKING 6.00 / EA Ships in 3-5 days
183 - JAM NUT GR15A726 183 - JAM NUT 37.20 / EA Ships in 3-5 days
186 - BEARING ROD BRONZE FILLED PTFE GR112342 186 - BEARING ROD BRONZE FILLED PTFE 97.50 / EA Ships in 3-5 days
187 - PACKING BLOCK URETHANE GR112561 187 - PACKING BLOCK URETHANE 55.00 / EA Ships in 3-5 days
194 - RETAINING RING GR116551 194 - RETAINING RING 9.55 / EA Ships in 3-5 days
213 - O-RING PACKING GH 130 200 300 GR117283 213 - O-RING PACKING GH 130 200 300 5.65 / EA Ships in 3-5 days
217 - ELBOW STREET 37 DEGREE GR117607 217 - ELBOW STREET 37 DEGREE 26.70 / EA Ships in 3-5 days
218 - NIPPLE STRAIGHT GR117608 218 - NIPPLE STRAIGHT 14.40 / EA Ships in 3-5 days
220 - ROD WIPER GR117739 220 - ROD WIPER 2.70 / EA Ships in 3-5 days
222 - BUSHING 3/4 X 1 NPT GR15Y463 222 - BUSHING 3/4 X 1 NPT 95.00 / EA Ships in 3-5 days
230 - MANIFOLD ADAPTER GR15H953 230 - MANIFOLD ADAPTER 308.00 / EA Ships in 3-5 days
231 - LABEL GR15B063 231 - LABEL 1.00 / EA Ships in 3-5 days
233 - CAP SCREW SOCKET HEAD GR107210 233 - CAP SCREW SOCKET HEAD 6.10 / EA Ships in 3-5 days
243 - SEALING WASHER GR178179 243 - SEALING WASHER 6.60 / EA Ships in 3-5 days
244 - BEARING PISTON BRONZE / PTFE GR178207 244 - BEARING PISTON BRONZE / PTFE 22.90 / EA Ships in 3-5 days
245 - SEAL PISTON GLASS FILLED PTFE GR178226 245 - SEAL PISTON GLASS FILLED PTFE 29.10 / EA Ships in 3-5 days
249 - PUMP PIN GR197443 249 - PUMP PIN 16.30 / EA Ships in 3-5 days
250 - TUBE HYDRAULIC SUPPLY GR15F519 250 - TUBE HYDRAULIC SUPPLY 45.00 / EA Ships in 3-5 days
284 - HYDRAULIC MOTOR REPAIR 130HS GR288758 284 - HYDRAULIC MOTOR REPAIR 130HS 1,415.00 / EA Ships in 3-5 days
285 - HYDRAULIC TRIP ROD PISTON CAP GR288735 285 - HYDRAULIC TRIP ROD PISTON CAP 762.00 / EA Ships in 3-5 days
HYDRAULIC MOTOR SEAL KIT GR246174 HYDRAULIC MOTOR SEAL KIT 104.50 / EA Ships in 3-5 days
39 found, showing page 1 of 1
