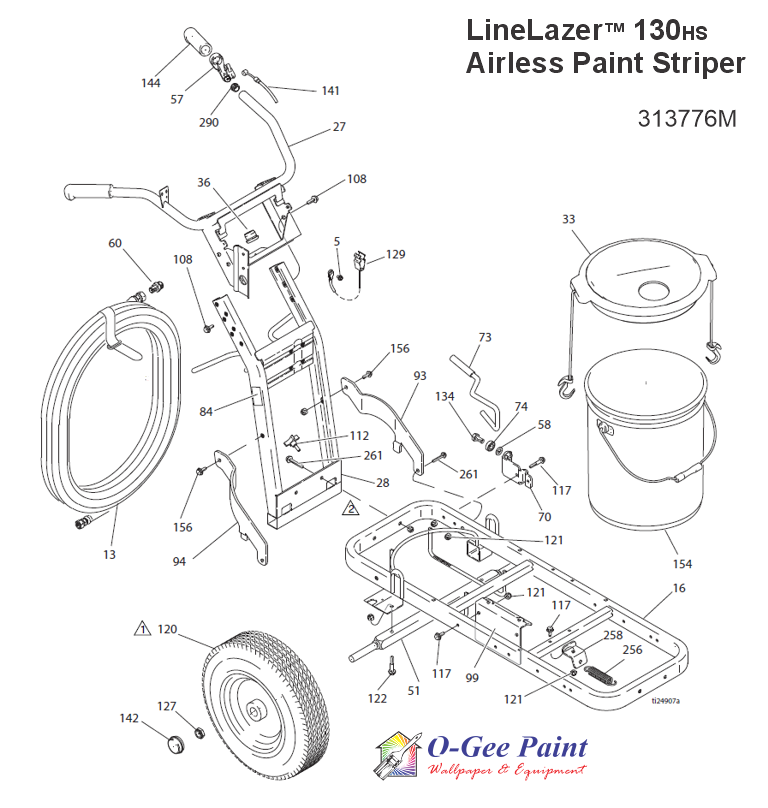

LineLazerStiper 130hs Main Assembly parts breakdown
MANUAL
40 found, showing page 1 of 1
Item Description Price UM Qty Add to Cart
005 - WIRE GROUND ASSY W/ CLAMP GR237686 005 - WIRE GROUND ASSY W/ CLAMP 86.75 / EA Ships in 3-5 days
013 - 3/8 X 50’ AIRLESS HOSE GR245225 013 - 3/8 X 50’ AIRLESS HOSE 277.50 / EA Ships in 3-5 days
016 - LINELAZER IV CART FRAME GR287623 016 - LINELAZER IV CART FRAME 823.00 / EA Ships in 3-5 days
027 - HANDLE BAR GR287417 027 - HANDLE BAR 322.00 / EA Ships in 3-5 days
028 - HANDLEBAR SUPPORT GR287622 028 - HANDLEBAR SUPPORT 532.00 / EA Ships in 3-5 days
036 - BUSHING STRANI RELIEF GR111348 036 - BUSHING STRANI RELIEF 5.80 / EA Ships in 3-5 days
051 - AXLE LINELAZER IV GR193405 051 - AXLE LINELAZER IV 165.50 / EA Ships in 3-5 days
057 - LEVER ACTUATOR LINELAZER WHEEL GR194310 057 - LEVER ACTUATOR LINELAZER WHEEL 53.30 / EA Ships in 3-5 days
058 - BALL GUIDE SPACER GR195134 058 - BALL GUIDE SPACER 3.00 / EA Ships in 3-5 days
060 - NIPPLE ADAPTER GR196176 060 - NIPPLE ADAPTER 6.60 / EA Ready to go
066 - DISTANCE SENSOR GR15K357 066 - DISTANCE SENSOR 221.00 / EA Ships in 3-5 days
068 - SENSOR SHIELD GR15J088 068 - SENSOR SHIELD 11.90 / EA Ships in 3-5 days
070 - MOUNTING BRACKET GR198891 070 - MOUNTING BRACKET 54.80 / EA Ships in 3-5 days
073 - BRAKE ROD GR198930 073 - BRAKE ROD 67.50 / EA Ships in 3-5 days
074 - BALL BEARING GR198931 074 - BALL BEARING 20.50 / EA Ships in 3-5 days
077 - RETAINING STRAP GR114271 077 - RETAINING STRAP 6.95 / EA Ships in 3-5 days
084 - LABEL WARNING GR15F638 084 - LABEL WARNING 1.00 / EA Ships in 3-5 days
093 - LEFT HANDLEBAR BRACE LLIV GR15F577 093 - LEFT HANDLEBAR BRACE LLIV 74.25 / EA Ships in 3-5 days
094 - RIGHT HANDLEBAR BRACE LLIV GR15F576 094 - RIGHT HANDLEBAR BRACE LLIV 74.75 / EA Ships in 3-5 days
099 - RESERVOIR BRACKET GR15F425 099 - RESERVOIR BRACKET 15.40 / EA Ships in 3-5 days
107 - SPRING CLIP GR178342 107 - SPRING CLIP 4.90 / EA Ships in 3-5 days
108 - CAP SCREW FLANGE HEAD GR112395 108 - CAP SCREW FLANGE HEAD 3.00 / EA Ships in 3-5 days
109 - TIE STRAP GR102478 109 - TIE STRAP 5.60 / EA Ships in 3-5 days
112 - KNOB PRONGED, LL GR111145 112 - KNOB PRONGED, LL 17.50 / EA Ready to go
117 - SCREW HEX FLANGE GR110837 117 - SCREW HEX FLANGE 5.30 / EA Ships in 3-5 days
120 - WHEEL REPLACEMENT REAR LL IV GR255162 120 - WHEEL REPLACEMENT REAR LL IV 165.00 / EA Ships in 3-5 days
121 - LOCK NUT NYLOCK INSERT 5/16 IN GR111040 121 - LOCK NUT NYLOCK INSERT 5/16 IN 6.40 / EA Ships in 3-5 days
122 - CAP SCREW FLANGE HD GR111194 122 - CAP SCREW FLANGE HD 3.30 / EA Ships in 3-5 days
127 - LOCK NUT GR112405 127 - LOCK NUT 4.60 / EA Ships in 3-5 days
129 - SCREW THREAD FORMING HEX GR112798 129 - SCREW THREAD FORMING HEX 3.20 / EA Ships in 3-5 days
134 - CAP SCREW HEX HD GR113961 134 - CAP SCREW HEX HD 2.70 / EA Ships in 3-5 days
141 - WHEEL CABLE LINELAZER II III GR241445 141 - WHEEL CABLE LINELAZER II III 40.80 / EA Ships in 3-5 days
142 - FRONT WHEEL DUST CAP GR114648 142 - FRONT WHEEL DUST CAP 9.60 / EA Ships in 3-5 days
144 - HANDLEBAR GRIP GR114659 144 - HANDLEBAR GRIP 19.70 / EA Ships in 3-5 days
154 - PLASTIC 5 GALLON PAIL GR115077 154 - PLASTIC 5 GALLON PAIL 18.50 / EA Ships in 3-5 days
156 - CAP SCREW FLANGE HEAD GR112395 156 - CAP SCREW FLANGE HEAD 3.00 / EA Ships in 3-5 days
256 - SPRING EXTENSION GR119696 256 - SPRING EXTENSION 10.50 / EA Ships in 3-5 days
258 - FRAME BRACKET GR15F441 258 - FRAME BRACKET 6.40 / EA Ships in 3-5 days
261 - HEX SCREW FLANGED GR116780 261 - HEX SCREW FLANGED 5.60 / EA Ships in 3-5 days
290 - TUBE PLUG GR120151 290 - TUBE PLUG 2.75 / EA Ships in 3-5 days
40 found, showing page 1 of 1
