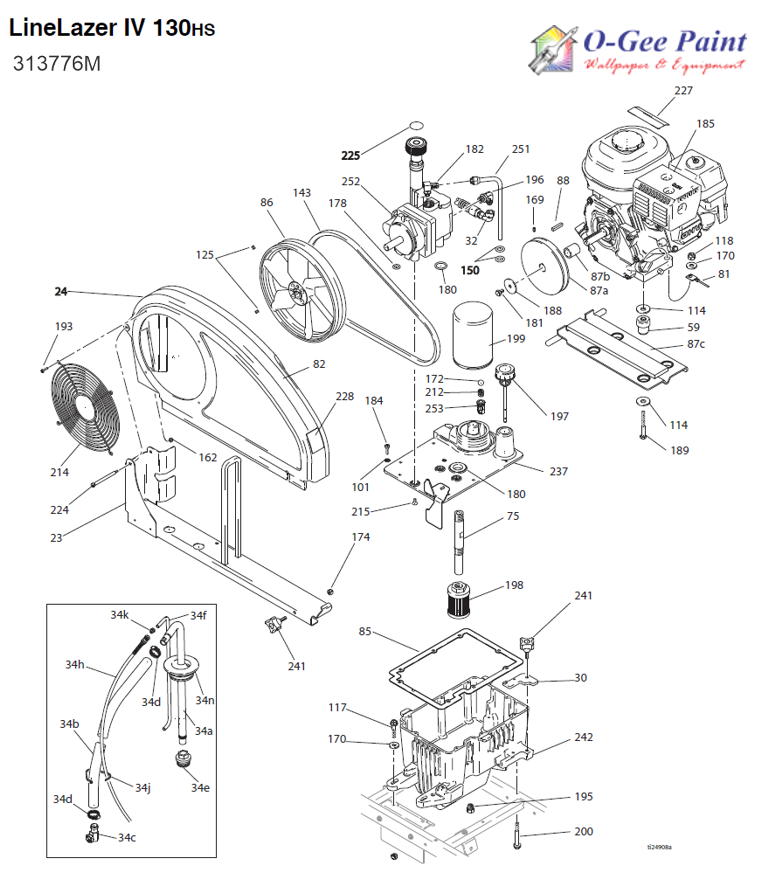

LineLazerStiper 130hs motor & hydraulic drive parts breakdown
MANUAL
62 found, showing page 1 of 2
Item Description Price UM Qty Add to Cart
024 - BELT GUARD GR248973 024 - BELT GUARD 341.00 / EA Ships in 3-5 days
030 - HOSE HYDRAULIC SUPPLY GR287175 030 - HOSE HYDRAULIC SUPPLY 150.00 / EA Ships in 3-5 days
034 - SUCTION RETURN HOSE GR287206 034 - SUCTION RETURN HOSE 511.00 / EA Ships in 3-5 days
034a - TUBE SUCTION 130hs GR15F149 034a - TUBE SUCTION 130hs 51.00 / EA Ships in 3-5 days
034b - HOSE FLUID SUCTION GR194306 034b - HOSE FLUID SUCTION 93.50 / EA Ships in 3-5 days
034c - ELBOW BARBED FITTING GR198119 034c - ELBOW BARBED FITTING 56.00 / EA Ships in 3-5 days
034d - HOSE CLAMP SST GR101818 034d - HOSE CLAMP SST 14.00 / EA Ships in 3-5 days
034e - INLET STRAINER 1"  GR181072 034e - INLET STRAINER 1" 14.95 / EA Ships in 3-5 days
034f - DRAIN TUBE GR198601 034f - DRAIN TUBE 28.00 / EA Ships in 3-5 days
034g - DEFLECTOR THREADED GR241920 034g - DEFLECTOR THREADED 3.25 / EA Ready to go
034h - 1/4 X 44 HOSE HIGH PRESSURE GR248008 034h - 1/4 X 44 HOSE HIGH PRESSURE 110.50 / EA Ships in 3-5 days
034j - TIE STRAP GR114958 034j - TIE STRAP 2.50 / EA Ships in 3-5 days
034k - BUSHING TUBE DRAIN  LL3400 GR196180 034k - BUSHING TUBE DRAIN LL3400 11.80 / EA Ships in 3-5 days
034n - PAIL GASKET GR15F513 034n - PAIL GASKET 38.00 / EA Ships in 3-5 days
059 - MOTOR MOUNT DAMPENER GR15E888 059 - MOTOR MOUNT DAMPENER 14.30 / EA Ships in 3-5 days
075 - SUCTION TUBE GR15E587 075 - SUCTION TUBE 32.80 / EA Ships in 3-5 days
081 - GROUND CONDUCTOR GR240997 081 - GROUND CONDUCTOR 8.55 / EA Ships in 3-5 days
082 - LABEL  LINELAZER 130HS GR15Y464 082 - LABEL LINELAZER 130HS 22.00 / EA Ships in 3-5 days
085 - RESERVOIR GASKET   130HS GR120604 085 - RESERVOIR GASKET 130HS 29.80 / EA Ships in 3-5 days
086 - PULLEY FAN GR15E410 086 - PULLEY FAN 285.00 / EA Ships in 3-5 days
087a - PULLEY 5.5" GR116908 087a - PULLEY 5.5" 122.50 / EA Ships in 3-5 days
088 - SQUARE KEY 3/16 X 1.25 GR117632 088 - SQUARE KEY 3/16 X 1.25 3.00 / EA Ships in 3-5 days
101 - LOCK WASHER GR100016 101 - LOCK WASHER 5.80 / EA Ready to go
114 - WASHER PLAIN GR108851 114 - WASHER PLAIN 6.00 / EA Ships in 3-5 days
117 - SCREW HEX FLANGE GR110837 117 - SCREW HEX FLANGE 5.50 / EA Ships in 3-5 days
118 - LOCK NUT GR110838 118 - LOCK NUT 6.50 / EA Ships in 3-5 days
143 - VEE BELT LINELAZER 200HS GR119433 143 - VEE BELT LINELAZER 200HS 71.75 / EA Ships in 3-5 days
150 - O-RING PACKING GR154594 150 - O-RING PACKING 2.70 / EA Ships in 3-5 days
151 - TERMINAL WIRE TAP GR114956 151 - TERMINAL WIRE TAP 3.00 / EA Ships in 3-5 days
162 - LOCK NUT GR116969 162 - LOCK NUT 2.50 / EA Ships in 3-5 days
169 - SET SCREW GR100002 169 - SET SCREW 5.50 / EA Ships in 3-5 days
170 - FLAT WASHER GR100023 170 - FLAT WASHER 5.99 / EA Ships in 3-5 days
172 - BALL METALLIC GR100084 172 - BALL METALLIC 10.60 / EA Ships in 3-5 days
174 - LOCK NUT GR102040 174 - LOCK NUT 0.55 / EA Ships in 3-5 days
178 - O-RING PACKING GR107188 178 - O-RING PACKING 6.10 / EA Ships in 3-5 days
180 - O-RING PACKING GR156401 180 - O-RING PACKING 17.20 / EA Ships in 3-5 days
181 - CAP SCREW HEX HEAD GR108842 181 - CAP SCREW HEX HEAD 6.00 / EA Ships in 3-5 days
182 - ELBOW FITTING MALE 90 DEGREE GR110792 182 - ELBOW FITTING MALE 90 DEGREE 35.60 / EA Ships in 3-5 days
185 - HONDA 5.5 HP ENGINE KIT 130HS GR248943 185 - HONDA 5.5 HP ENGINE KIT 130HS 2,290.00 / EA Ships in 3-5 days
185a - ENGINE HONDA 4.0  130HS GR120590 185a - ENGINE HONDA 4.0 130HS 1,860.00 / EA Ships in 3-5 days
188 - WASHER GR112717 188 - WASHER 7.05 / EA Ships in 3-5 days
189 - CAP SCREW HEX HD GR113664 189 - CAP SCREW HEX HD 6.50 / EA Ships in 3-5 days
193 - MACHINE SCREW TORX PAN HD GR115477 193 - MACHINE SCREW TORX PAN HD 3.50 / EA Ships in 3-5 days
195 - PIPE PLUG GR101754 195 - PIPE PLUG 7.00 / EA Ships in 3-5 days
196 - FITTING HYDRAULIC 695 795 GR116793 196 - FITTING HYDRAULIC 695 795 17.10 / EA Ships in 3-5 days
197 - CAP FILLER BREATHER GR116915 197 - CAP FILLER BREATHER 35.60 / EA Ships in 3-5 days
198 - SUCTION SCREEN HYDRAULIC GR116919 198 - SUCTION SCREEN HYDRAULIC 44.80 / EA Ships in 3-5 days
199 - OIL FILTER HYDRAULIC MOTOR GR246173 199 - OIL FILTER HYDRAULIC MOTOR 79.75 / EA Ships in 3-5 days
62 found, showing page 1 of 2
