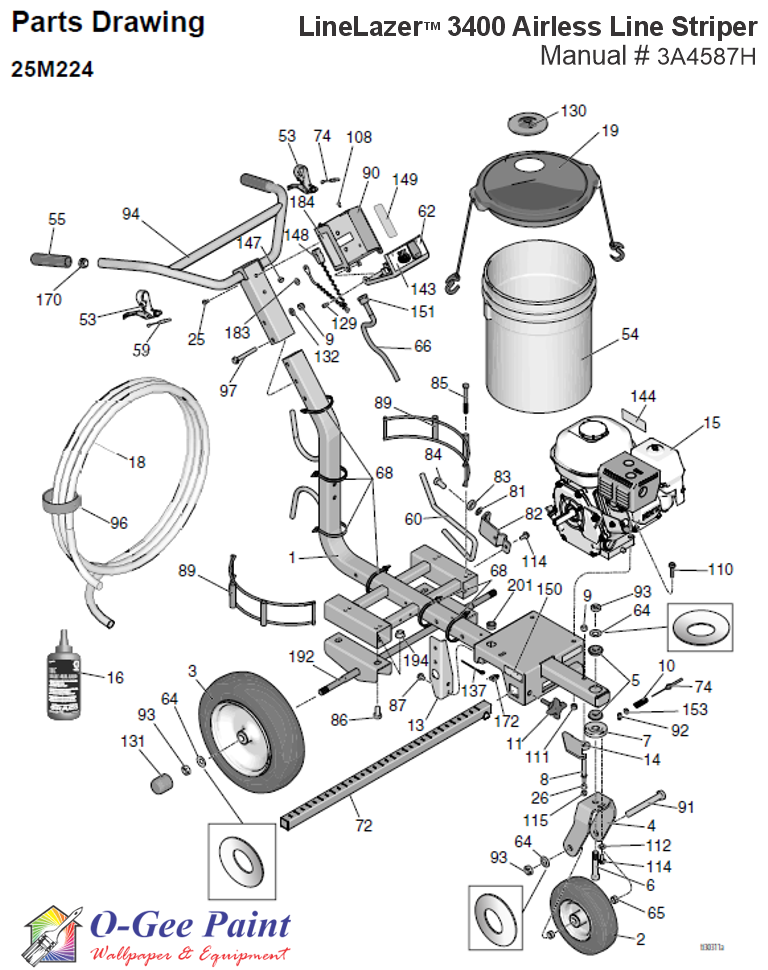

linelazer 3400 main assembly parts breakdown
CLICK IMAGE FOR MANUAL
69 found, showing page 1 of 2
 Page  1  2  >
Item Description Price UM Qty Add to Cart
001 - LINELAZER FRAME GR19D570 001 - LINELAZER FRAME 847.00 / EA Ships in 7-12 days
002 - SMALL WHEEL GR119542 002 - SMALL WHEEL 96.50 / EA Ships in 7-12 days
003 - LARGE WHEEL GR119543 003 - LARGE WHEEL 128.50 / EA Ships in 7-12 days
004 - FRONT FORK GR15F127 004 - FRONT FORK 123.00 / EA Ships in 7-12 days
005 - FLANGED BEARING GR119532 005 - FLANGED BEARING 9.10 / EA Ships in 7-12 days
006 - FORK PIN GR15E780 006 - FORK PIN 48.30 / EA Ships in 7-12 days
007 - ADJUSTER DISK GR15E773 007 - ADJUSTER DISK 40.70 / EA Ships in 7-12 days
008 - LEVER PIN GR15E792 008 - LEVER PIN 40.70 / EA Ships in 7-12 days
009 - LOCK NUT GR101566 009 - LOCK NUT 12.70 / EA Ships in 7-12 days
010 - COMPRESSION SPRING GR114682 010 - COMPRESSION SPRING 9.10 / EA Ships in 7-12 days
011 - PRONGED KNOB GR108471 011 - PRONGED KNOB 15.10 / EA Ready to go
013 - MANIFOLD BRACKET GR15E748 013 - MANIFOLD BRACKET 40.70 / EA Ships in 7-12 days
014 - CASTER LEVER GR287682 014 - CASTER LEVER 60.50 / EA Ships in 7-12 days
015 - 4.0 HP ENGINE GR108879 015 - 4.0 HP ENGINE 1,840.00 / EA Ships in 7-12 days
016 - 8 OZ THROAT SEAL LIQUID GR206994 016 - 8 OZ THROAT SEAL LIQUID 15.60 / EA Ready to go
018 - 1/4" X 50’ HOSE GR249080 018 - 1/4" X 50’ HOSE 115.00 / EA Ships in 7-12 days
019 - PAIL COVER GR24U241 019 - PAIL COVER 138.50 / EA Ships in 7-12 days
025 - FLAT HEAD SCREW GR108538 025 - FLAT HEAD SCREW 12.20 / EA Ships in 7-12 days
026 - FLANGED BEARING GR111016 026 - FLANGED BEARING 5.00 / EA Ships in 7-12 days
053 - ACTUATOR LEVER GR194310 053 - ACTUATOR LEVER 64.25 / EA Ready to go
054 - PLASTIC 5 GALLON PAIL GR115077 054 - PLASTIC 5 GALLON PAIL 26.80 / EA Ships in 7-12 days
055 - HANDLE GRIP GR116139 055 - HANDLE GRIP 5.15 / EA Ships in 7-12 days
059 - GUN CABLE GR15E992 059 - GUN CABLE 56.75 / EA Ships in 7-12 days
060 - BRAKE ROD GR15E993 060 - BRAKE ROD 72.75 / EA Ships in 7-12 days
062 - CONTROL BOX ASSEMBLY COVER GR287565 062 - CONTROL BOX ASSEMBLY COVER 375.00 / EA Ships in 7-12 days
064 - BELLEVILLE WASHER GR119563 064 - BELLEVILLE WASHER 11.80 / EA Ships in 7-12 days
065 - WHEEL SPACER GR15E996 065 - WHEEL SPACER 9.10 / EA Ships in 7-12 days
066 - CONTROL WIRING HARNESS GR15E995 066 - CONTROL WIRING HARNESS 101.50 / EA Ships in 7-12 days
072 - GUN SUPPORT BRACKET GR17J407 072 - GUN SUPPORT BRACKET 94.50 / EA Ships in 7-12 days
074 - CASTER WHEEL CABLE GR241445 074 - CASTER WHEEL CABLE 48.30 / EA Ships in 7-12 days
081 - GUIDE BALL SPACER GR195134 081 - GUIDE BALL SPACER 5.00 / EA Ships in 7-12 days
082 - MOUNTING BRACKET GR198891 082 - MOUNTING BRACKET 69.75 / EA Ships in 7-12 days
083 - BALL BEARING GR198931 083 - BALL BEARING 22.40 / EA Ships in 7-12 days
084 - HEX HEAD CAP SCREW GR113961 084 - HEX HEAD CAP SCREW 5.35 / EA Ships in 7-12 days
085 - 3/8-16 X 3.5 LL SCREW GR867517 085 - 3/8-16 X 3.5 LL SCREW 4.35 / EA Ships in 7-12 days
087 - HEX HEAD CAP SCREW GR111801 087 - HEX HEAD CAP SCREW 6.30 / EA Ships in 7-12 days
089 - BUCKET HOLDER GR17N536 089 - BUCKET HOLDER 42.80 / EA Ships in 7-12 days
090 - CONTROL BOX ASSEMBLY GR15F047 090 - CONTROL BOX ASSEMBLY 83.50 / EA Ships in 7-12 days
091 - HEX HEAD CAP SCREW GR113665 091 - HEX HEAD CAP SCREW 11.40 / EA Ships in 7-12 days
092 - STOP WIRE GR114802 092 - STOP WIRE 5.35 / EA Ready to go
093 - NYLON THIN LOCK NUT GR119554 093 - NYLON THIN LOCK NUT 3.20 / EA Ships in 7-12 days
094 - HANDLE BAR GR24Z284 094 - HANDLE BAR 284.00 / EA Ships in 7-12 days
096 - RETAINING STRAP GR114271 096 - RETAINING STRAP 7.35 / EA Ships in 7-12 days
108 - HEX WASHER HEAD SCREW GR128978 108 - HEX WASHER HEAD SCREW 6.45 / EA Ships in 7-12 days
110 - FLANGED HEX SCREW GR112960 110 - FLANGED HEX SCREW 7.25 / EA Ships in 7-12 days
111 - LOCK NUT GR110838 111 - LOCK NUT 7.70 / EA Ships in 7-12 days
112 - FLAT WASHER GR122669 112 - FLAT WASHER 5.00 / EA Ships in 7-12 days
114 - CAP SCREW GR110963 114 - CAP SCREW 7.10 / EA Ships in 7-12 days
69 found, showing page 1 of 2
 Page  1  2  >
