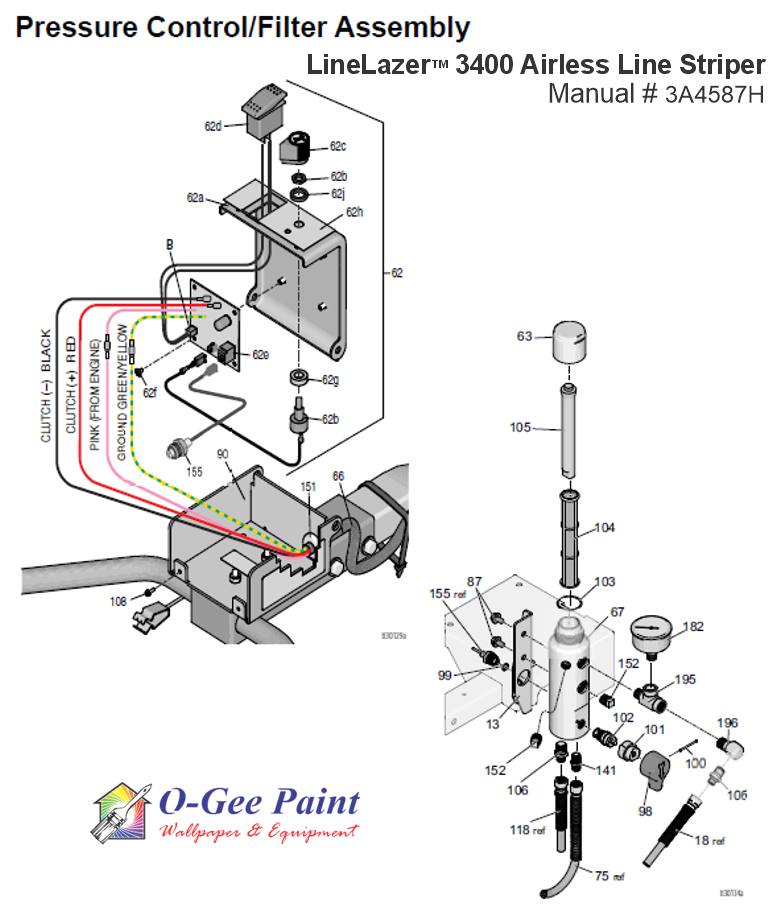

linelazer 3400 pressure control, filter assembly parts drawing
CLICK IMAGE FOR MANUAL
27 found, showing page 1 of 1
Item Description Price UM Qty Add to Cart
013 - MANIFOLD BRACKET GR15E748 013 - MANIFOLD BRACKET 40.70 / EA Ships in 7-12 days
062A - CONTROL BOX COVER GR15E991 062A - CONTROL BOX COVER 84.25 / EA Ships in 7-12 days
062B - POTENTIOMETER GR256219 062B - POTENTIOMETER 142.00 / EA Ships in 7-12 days
062C - PRESSURE CONTROL KNOB GR116167 062C - PRESSURE CONTROL KNOB 5.60 / EA Ships in 7-12 days
062D - POWER SWITCH GR116752 062D - POWER SWITCH 35.00 / EA Ships in 7-12 days
062E - CONTROL BOARD GR25P550 062E - CONTROL BOARD 405.00 / EA Ships in 7-12 days
062F - MACHINE SCREW GR113045 062F - MACHINE SCREW 4.45 / EA Ships in 7-12 days
062G - PRESSURE CONTROL SHAFT SPACER GR198650 062G - PRESSURE CONTROL SHAFT SPACER 7.20 / EA Ships in 7-12 days
062H - CONTROLS INSTRUCTION LABEL GR15F540 062H - CONTROLS INSTRUCTION LABEL 8.75 / EA Ships in 7-12 days
062J - GASKET GR15C973 062J - GASKET 5.00 / EA Ships in 7-12 days
063 - MANIFOLD FILTER CAP GR287285 063 - MANIFOLD FILTER CAP 70.00 / EA Ships in 7-12 days
067 - FILTER MANIFOLD GR17K166 067 - FILTER MANIFOLD 198.50 / EA Ready to go
087 - HEX HEAD CAP SCREW GR111801 087 - HEX HEAD CAP SCREW 6.30 / EA Ships in 7-12 days
098 - HANDLE GR15C780 098 - HANDLE 7.00 / EA Ready to go
099 - O-RING GR111457 099 - O-RING 15.60 / EA Ready to go
100 - GROOVED PIN GR15C972 100 - GROOVED PIN 5.00 / EA Ready to go
101 - PRIME BASE VALVE GR224807 101 - PRIME BASE VALVE 6.55 / EA Ready to go
102 - DRAIN VALVE GR239914 102 - DRAIN VALVE 117.49 / EA Ready to go
103 - O-RING GR117285 103 - O-RING 8.25 / EA Ready to go
104 - FLUID FILTER GR244067 104 - FLUID FILTER 19.10 / EA Ready to go
105 - DIFFUSION TUBE GR15C766 105 - DIFFUSION TUBE 7.00 / EA Ships in 7-12 days
106 - NIPPLE ADAPTER GR196177 106 - NIPPLE ADAPTER 5.85 / EA Ships in 7-12 days
141 - NIPPLE FITTING GR196181 141 - NIPPLE FITTING 5.00 / EA Ships in 7-12 days
152 - PLUG PIPE GR15G331 152 - PLUG PIPE 9.60 / EA Ships in 7-12 days
155 - TRANSDUCER HARNESS GR15F782 155 - TRANSDUCER HARNESS 177.00 / EA Ships in 7-12 days
196 - ELBOW FITTING GR196179 196 - ELBOW FITTING 20.80 / EA Ships in 7-12 days
MANIFOLD FILTER REPAIR KIT GR24Z867 MANIFOLD FILTER REPAIR KIT 791.00 / EA Ships in 7-12 days
27 found, showing page 1 of 1
