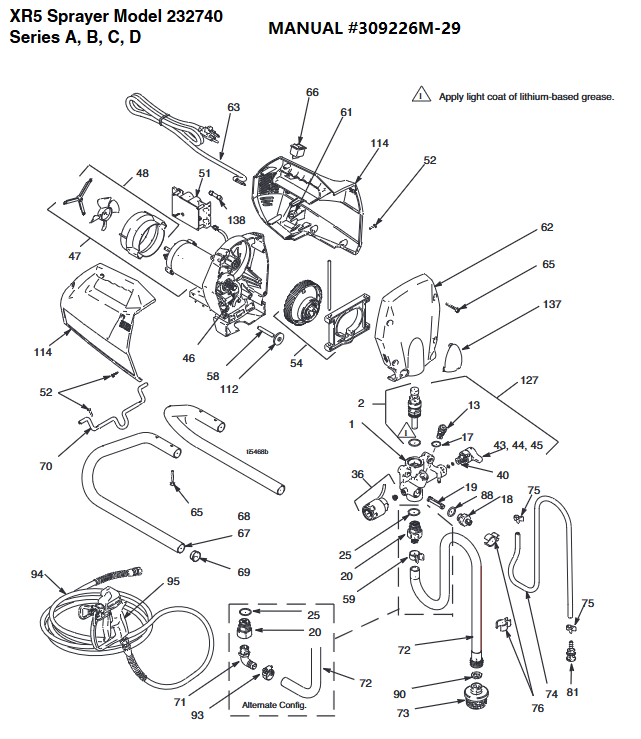

O-Gee Paint - XR5 SPRAYER MODEL 232740

USE WITH OUTLET 243094., 16E844
ALSO FOUND IN OTHER SPRAYERS

INLET VALVE O-RING ON
TRADEWORKS 150 SRS B 16F291
MAGNUM X5

UPGRADE TO SOLVENT RESISTANT #118594

025 - O-RING $2.70

Inlet valve O-Ring Packing for Graco Magnum series airless sprayers.
Fits both parts # 243093 and # 245070

069 - TUBING END PLUG $6.85

TUBING END PLUG

061 - STRAIN RELIEF BUSHING $6.35

BUSHING STRAIN RELIEF

045 - PRIME VALVE $3.25

PRIME VALVE LOCK PIN

052 - MACHINE SCREW $3.50

MACH TORX PAN HEAD
8-16 X 5/8 IN. PLASTITE

065 - MACHINE SCREW $0.70

torx/slt pan hd, 1/4 - 20 x 1.375 in. Taptite

075 - DRAIN TUBE CLAMP $2.45

DRAIN TUBE CLAMP MAGNUM

066 - POWER SWITCH $21.50

ON/OFF POWER SWITCH XR5,7,9 I

071 - INLET ELBOW $3.80

MAGNUM ELBOW INLET I

059 - SPRING CLAMP $2.65

Suction tube clamp for Magnum series airless sprayers. For securing cut end suction tubes over inlet valve #245070. Easy to pinch to remove for cleaning.

066 - POWER SWITCH ROCKER $4.55

XR SERIES D,E
LTS15 SERIES A

046 - RETAINER CLIP $2.80

CLIP WIRE RETAINER

138 - FUSE $2.45

USE WITH CONTROL BOARD #243228
MAGNUM XR5 XR7, PRO X7

FINISHPRO 290 COMPRESSOR BOARD #257819

068 - LEFT LEG $110.00

MAGNUM DX LEFT LEG
